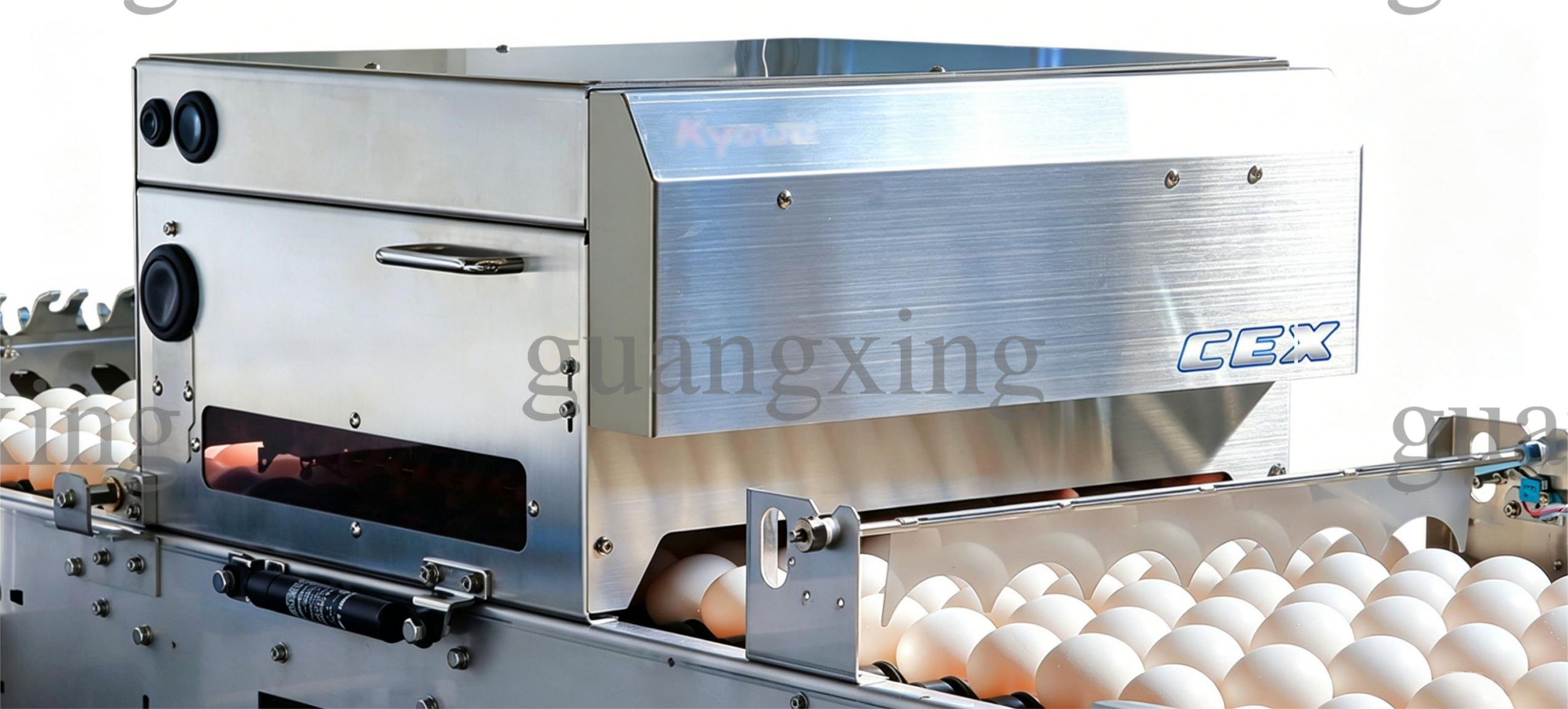

Cracked Egg Detector
Dirty Egg Detector
Abnormal Egg Detector
Key Features
Self-developed inspection tech overcomes core difficulties
Our newly developed vibration analysis method eliminates the precision defects of conventional acoustic analysis caused by driving noise and stray interference, enabling high-precision and stable inspection. It requires no forceful shell tapping for impact sound collection, making it an egg-friendly optimal inspection technology.
Details
Identify egg quality via eggshell vibration feedback for precise detection with automatic egg checking device.

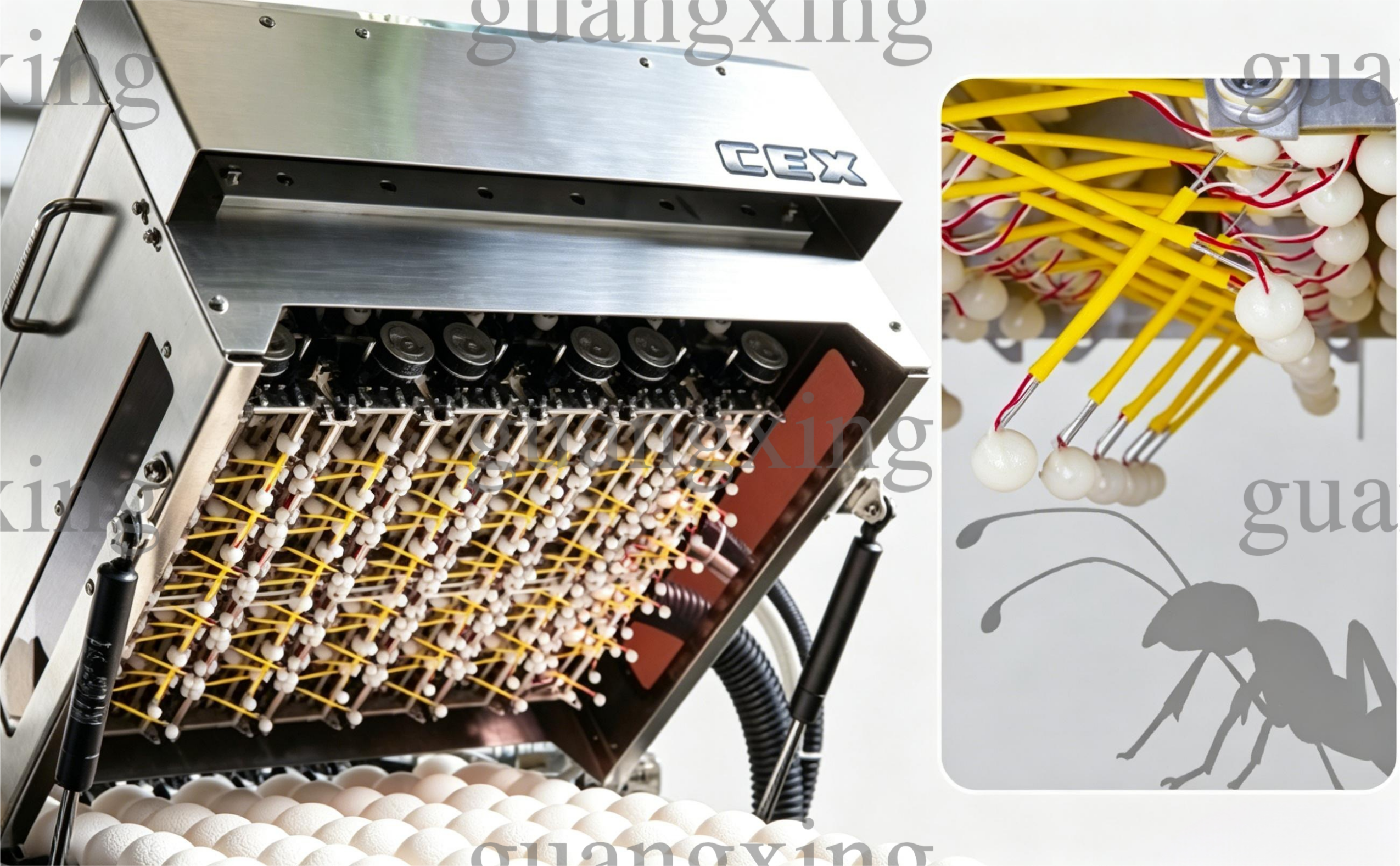

The vibrating ball of the tactile sensor gently taps eggshells. It distinguishes intact eggs from cracked ones by rebound performance.The ball bounces repeatedly off sound eggs, while barely rebounding from cracked shells.
High sensitivity & gentle tapping
Required rebound vibration data is obtained via gentle tapping to minimize impact stress on eggs.The high-sensitivity tactile sensor smoothly strikes around eggshells for 20 times per egg, thoroughly spotting all cracked eggs.
Compact structure, easy to retrofit egg checking device onto existing egg inspection equipment.
Unlike conventional acoustic inspection units, it requires no noise reduction measures and features an exceptionally compact design. The control box can be mounted under the optical inspection conveyor to save space, fitting most existing egg washers and graders. (Certain models need extra parts and partial modification.)

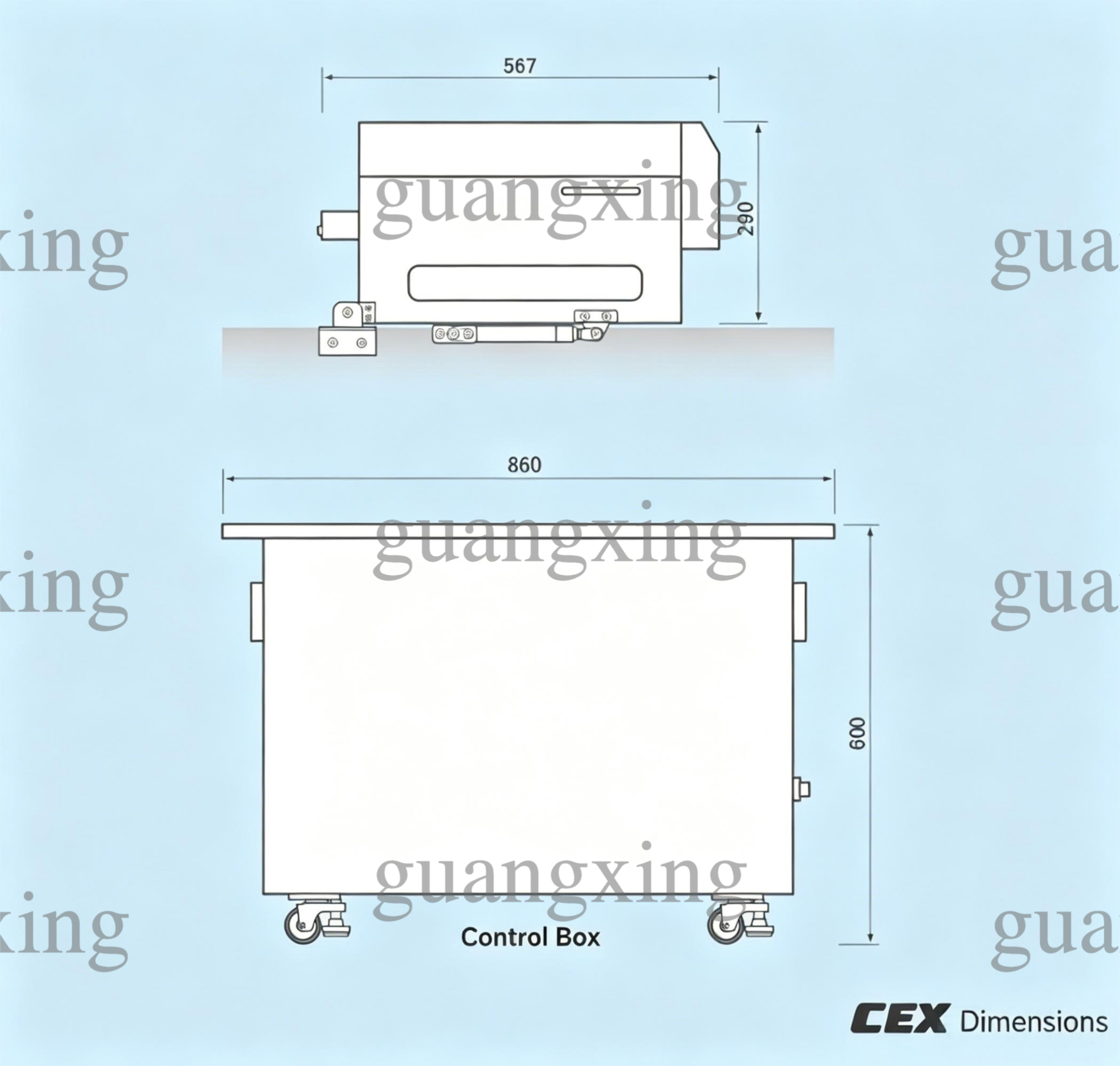

Dimension Drawing

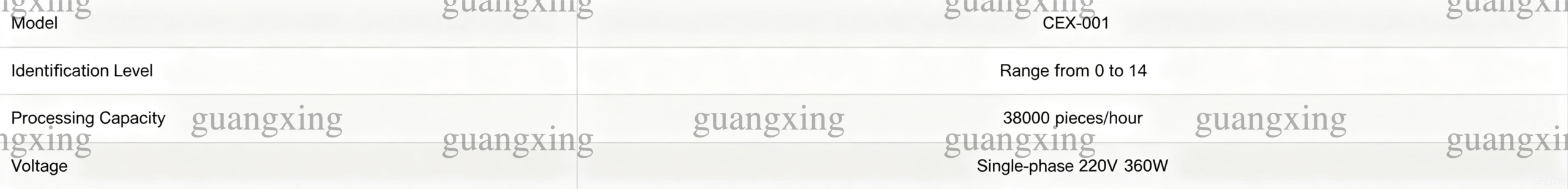

Specifications
Key Features
High-tech dirty egg inspection equipment meets customers' strict quality requirements.

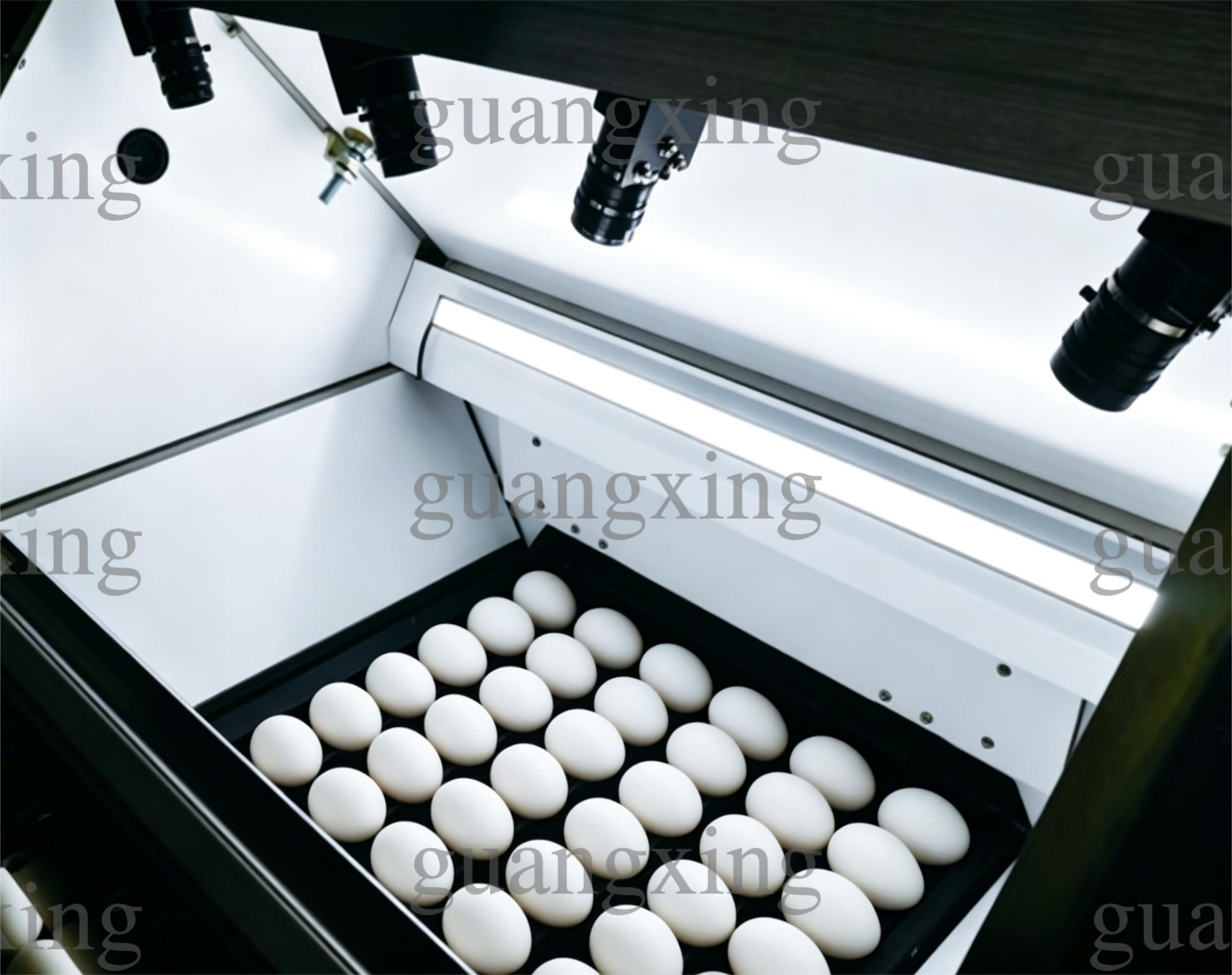

The DEX dirty egg inspector adopts our proprietary image recognition technology to precisely detect stains and foreign matter on eggshell surfaces. Four CCD cameras installed at the pointed and blunt ends of each egg capture all contaminants including residual yolk, egg white, chicken manure, feathers, cage rust, pigment spots and tiny pinholes across the entire shell. A special light source highlights the eggshell to enhance contrast between shells and dirt, enabling high-accuracy inspection of soiled eggs.
Inspection remains unaffected even with mixed-color eggs.
It automatically identifies white, light brown and brown eggs, unaffected by shell color, and accurately detects tiny stains invisible to the naked eye.
Real-time display of inspection status
Operators can monitor egg inspection status on the operation screen. Mark “NG” is displayed above soiled eggs judged defective. Error messages pop up automatically on screen in case of internal equipment faults. Three eggshell colors are available with adjustable inspection sensitivity from level 0 to 10 respectively.
Dimension Drawing

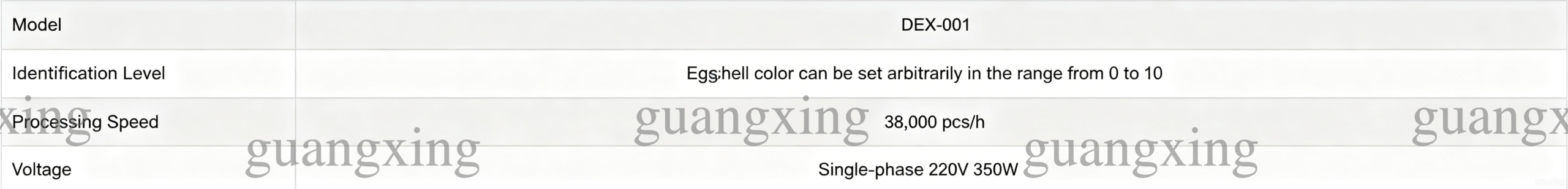

Specifications
Key Features
Adopts near-infrared ray to inspect various defective eggs
- Eggs with special-colored shells such as blue cannot be inspected.
- Light intensity adjustment is required for eggs with extremely low light transmittance.
Easy operation with touch panel & color display
Start up simply by switching on the main power without complicated setup. Equipped with an intuitive color touchscreen for easy single-finger operation.
Dimension Drawing

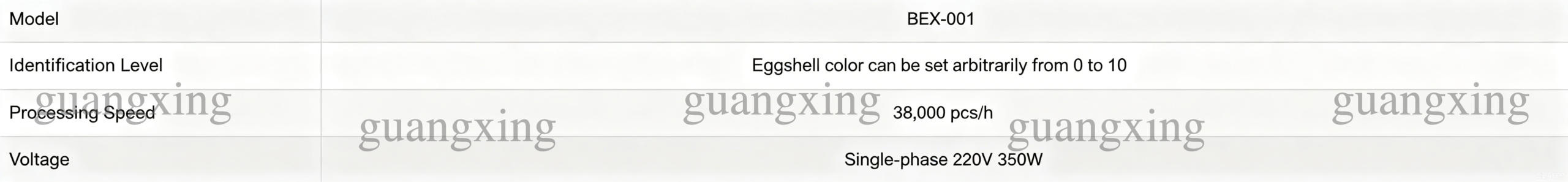

Specifications
