US Series Mini Automatic Egg Washing Grading Packaging System
GX-Kyowa Machinery launches the well-received US series compact automatic egg processing line. This practicalautomatic egg washing and grading machine integrates egg washing, grading and packaging features and boastsoutstanding cost performance. Since its debut in 1967, this professional egg processing equipment runs stably,achieves high-precision cleaning and classification, and owns sturdy and long- lasting build. We have shipped over1250 sets worldwide, gaining consistent recognition from egg farms and small and medium egg processingfactories. This high-efficiency egg cleaning machine can process 3600 to 10000 eggs per hour, realizing fullautomation of egg washing, drying, sizing and packing. Featuring simple operation and low maintenance cost, it isthe ideal automated solution for small-scale egg production.
Main Features of Automatic Egg Washing Machine
Popular egg processing machine with cumulative sales exceeding 1,250 sets
Founded in 1959, GX-Kyowa Machinery adheres to the corporate philosophy of “serving society with exquisitetechnology and superior products”. The US series, the most straightforward egg washing and gradingequipment, was born under this core principle. It has grown alongside the development of the poultry and eggfarming industry and serves as the original foundational automatic egg processing machine that marks thestarting point of Kyowa Machinery.
Supporting worldwide poultry breeding industry
Our US series automatic egg washing machine adopts a compact and simple structure while delivering robust washing performance and precise grading accuracy. This efficient egg processing equipment ensures easy operation, low maintenance costs, long service life, and flexible compatibility with small-batch egg production. These outstanding advantages help it gain extensive trust and recognition from global customers.
Egg Handling Capacity
US-36: Processing capacity 3600 eggs per hour
US-51: Processing capacity 5100 eggs per hour
US-100: Processing capacity 10000 eggs per hour
Product Details of Automatic Egg Washing & Grading Machine
The US-36 is the smallest integrated egg washing and grading machine in the product lineup. It only requires one to two operators, making it ideal for household operation and small-scale egg production.

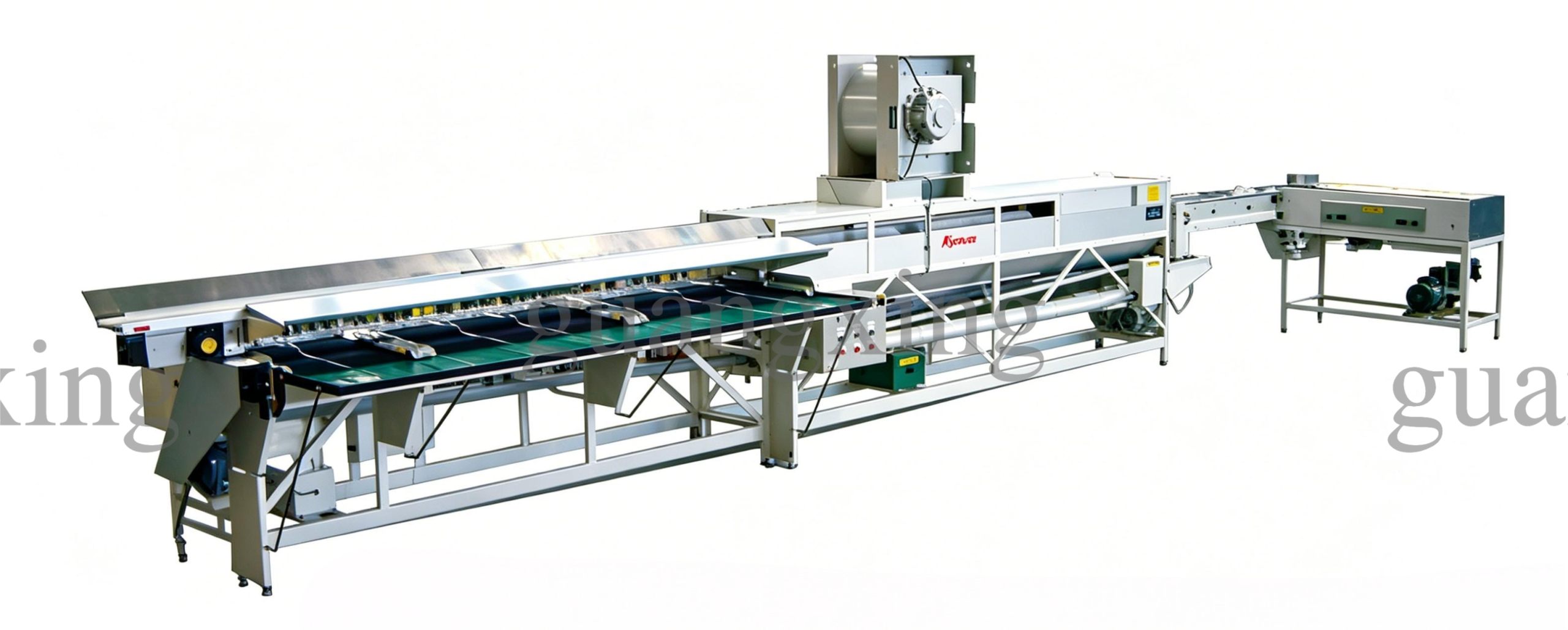

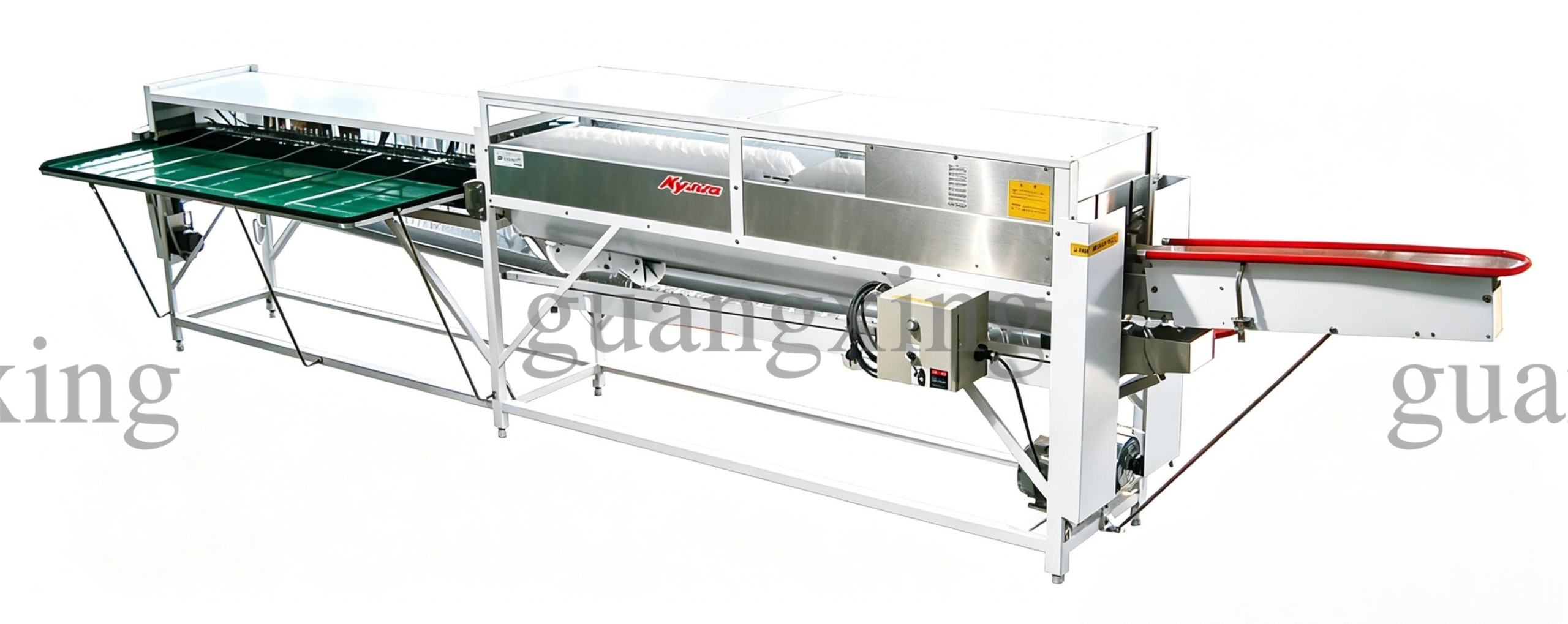

Equipment Photo of US-36 (3,600 Eggs Per Hour)
Standard Layout Plan of US-36 (3,600 Eggs Per Hour)
The US-51 serves as an upgraded model of the US-36 series. It features a standard 6-row egg feeding table, plus an equipped water heater and blower. This machine ranks among the most popular models for medium-sized poultry farms.

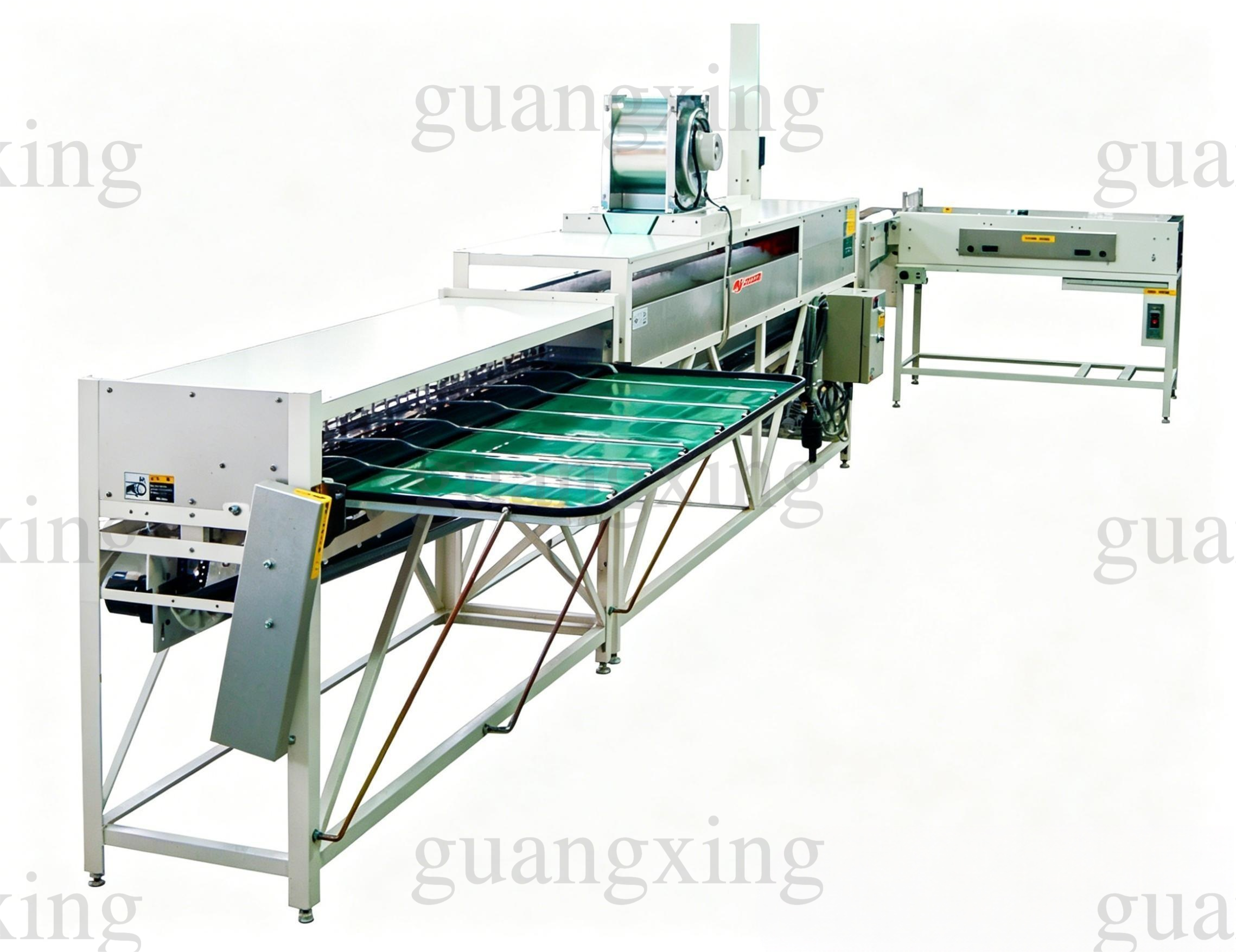

Equipment Photo of US-51 (5,100 Eggs Per Hour)

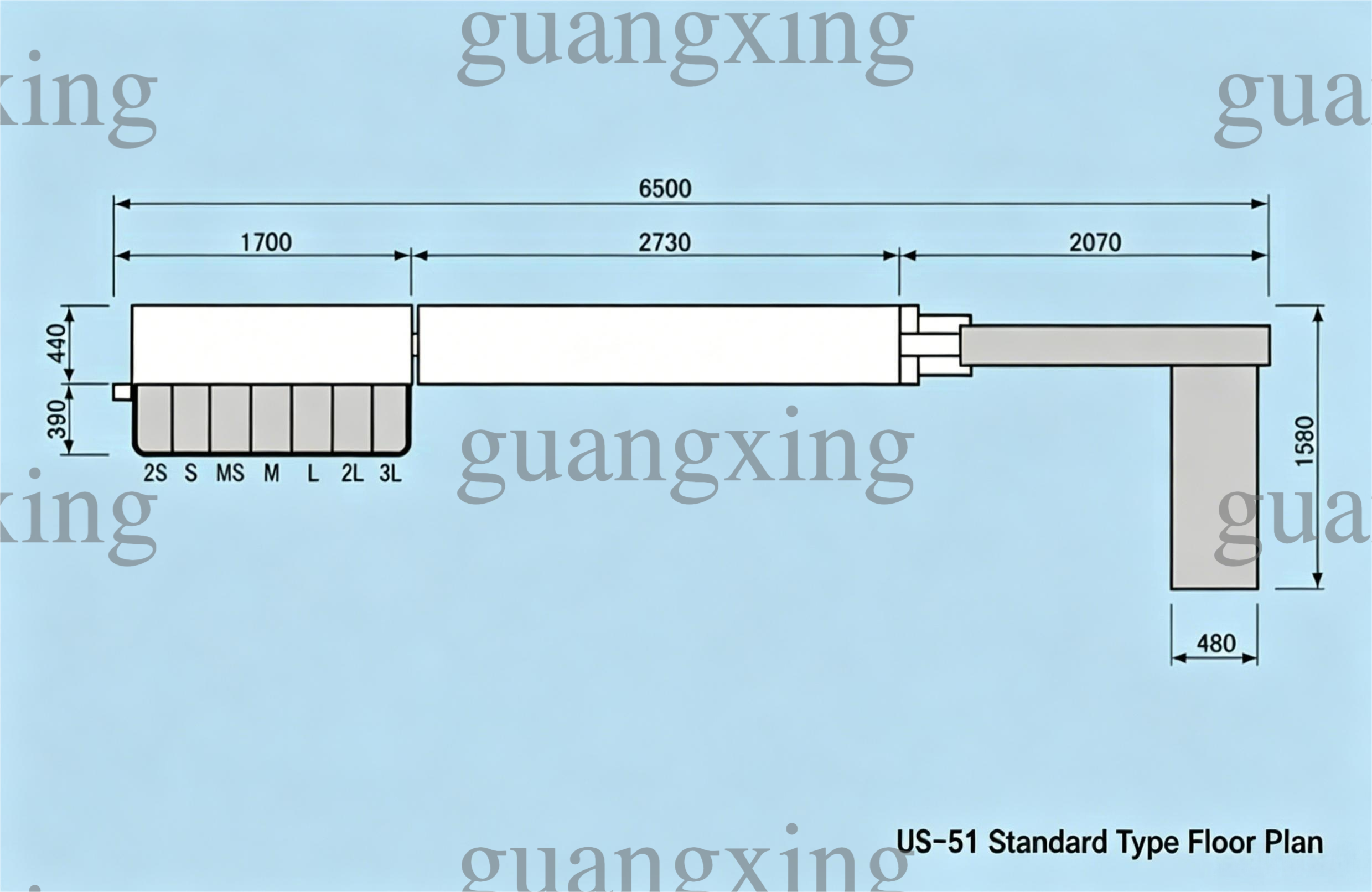

Standard Layout Plan & Photo of US-51 (5,100 Eggs Per Hour)
The US-100 boasts the maximum processing capacity among the US series models. In addition to the standard 6-row egg feeding table, it is also equipped with a water heater and a blower. With a processing speed of 10,000 eggs per hour, it powerfully supports high-efficiency egg washing and grading operations.

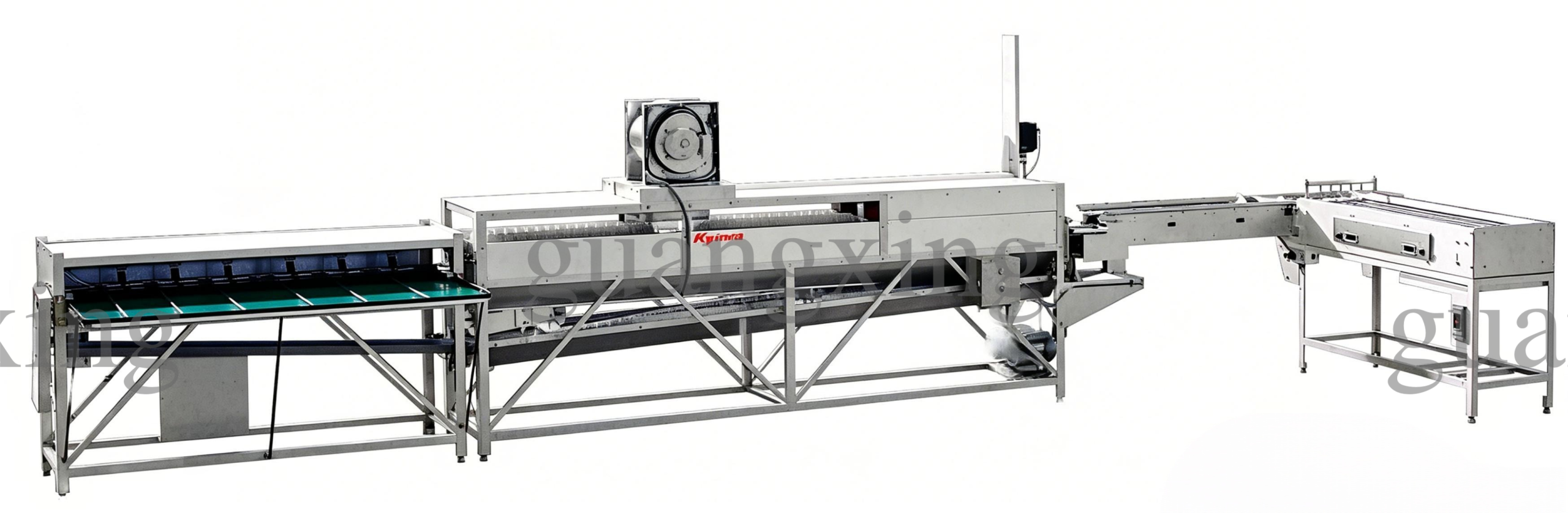

Equipment Photo of US-100 (10,000 Eggs Per Hour)

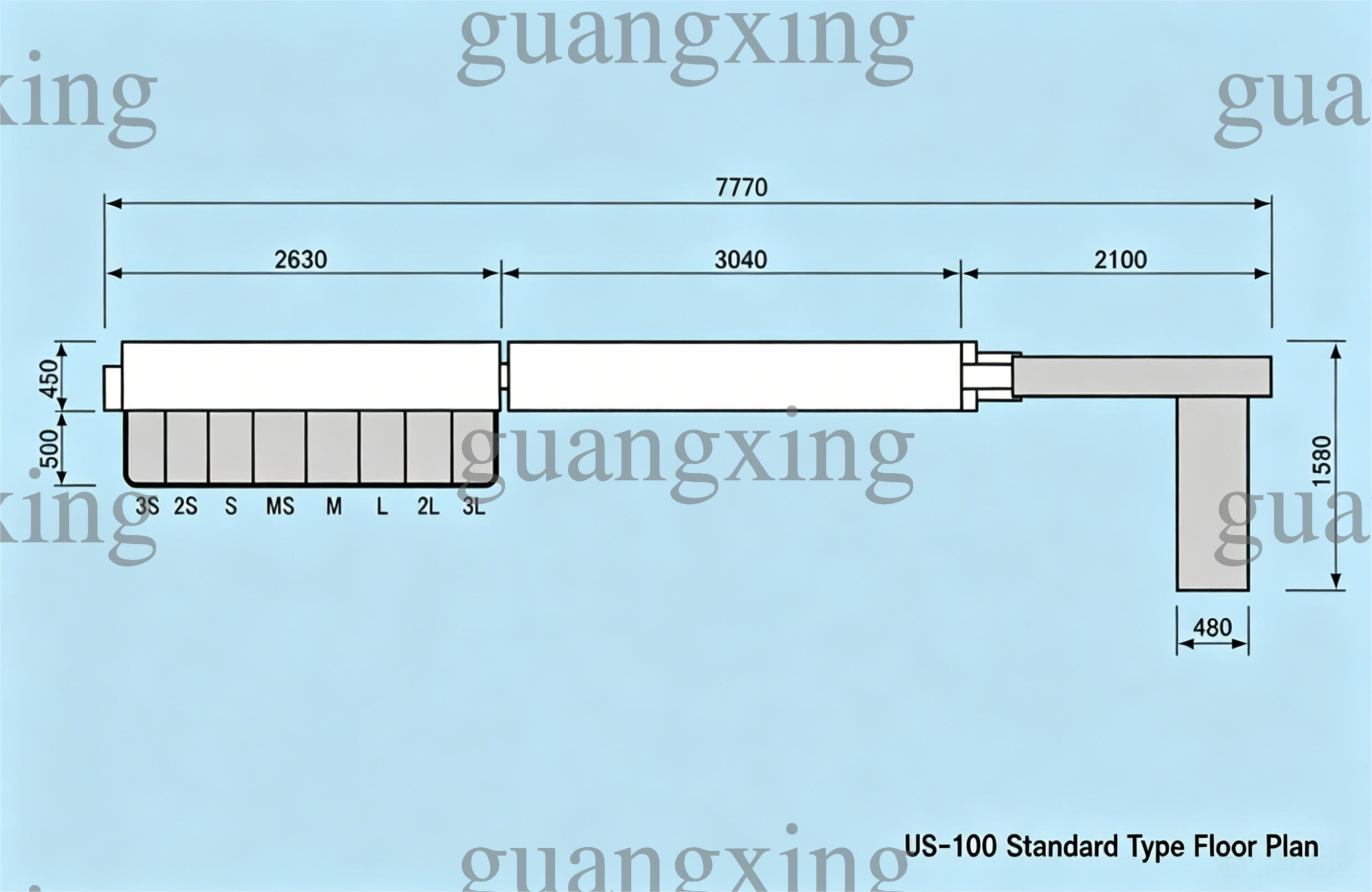

Standard Layout Plan of US-100 (10,000 Eggs Per Hour)
Specification Table of Automatic Egg Washing Machine
Optional Additional Features
Egg Supply Table
It can transport up to 6 rows of eggs at the same time and conduct egg inspection as the conveyor belt moves forward slowly. The maximum 6-row egg feeding design greatly eases the labor burden of arranging eggs side by side on the conveyor. It can fully inspect eggs in slow movement. Working with an egg suction device, it achieves more convenient and efficient operation.
Egg Suction Device
The suction-type egg suction device assists in transporting eggs from egg trays to the egg feeding table.
Egg Candling Chamber
The 6-row egg feeding table is equipped with curtains and mirrors. It adopts projected optical fiber lighting to easily identify defective eggs and achieve high-precision egg inspection.
UV Sterilization Device
This device uses high-efficiency ultraviolet rays to irradiate eggs on the conveyor and eliminate bacteria on the eggshell surface.
Liquid Medicine Injection Pump
This device injects high-efficiency bactericidal sodium hypochlorite into cleaning water for sterilization. After use, thoroughly clean the machine interior to prevent the liquid medicine from corroding metal parts.
